MIPI DSI TX Controller Example Design

You can choose to generate the example design when generating the core in the IP Manager Configuration window. Compile the example design project and download the .hex or .bit file to your board.

Important: tested the example design generated with the default parameter options only.

The example design targets the Titanium Ti60 F225 Development Board. This design generates a video stream and sends the video data to a display panel through the MIPI DSI TX Controller. Apart from the Titanium Ti60 F225 Development Board, the example design requires the following hardware:

  • Dual MIPI to DSI Converter Daughter Card
  • Mini-DSI Panel Connector Daughter Card
  • Mini-DSI Panel display
Figure 1. MIPI DSI TX Controller Core Example Design

After power-up, press the reset button (SW7), then you should be able to see a video displayed on the panel module.

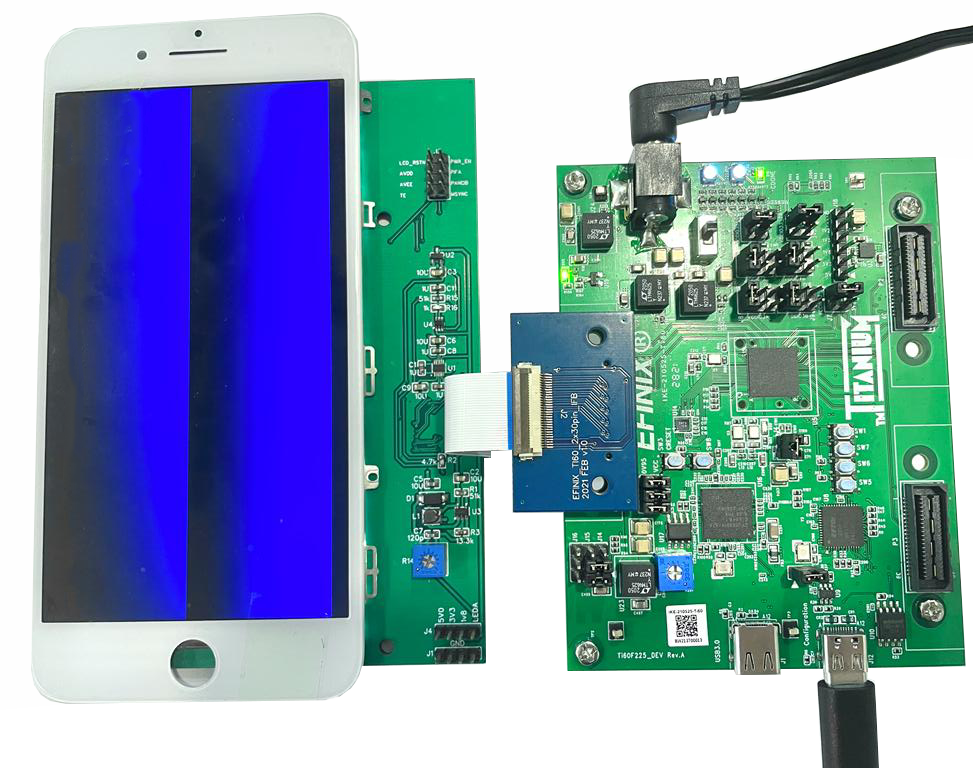

Figure 2. MIPI DSI TX Controller Example Design Design Set Up

Table 1. Example Design Implementation
FPGA Logic and Adders Flip-flops Memory Blocks fMAX (MHz)1 Efinity® Version2
i_sys_clk dsi_pclk i_mipi_pclk mipi_clk i_mipi_tx_pclk
Ti60 F225 C4 4,608 1,861 15 200 457 304 210 199 2021.2
1 Using default parameter settings.
2 Using Verilog HDL.
