MIPI D-PHY TX Controller Core

The MIPI D-PHY is a scalable physical layer for interfacing various components such as cameras and displays to host devices. The MIPI D-PHY TX Controller core allows you to control and configure the MIPI D-PHY TX interface. You use the MIPI D-PHY TX Controller core with the Titanium HSIO pins configured as MIPI TX lanes to build a custom MIPI interface.

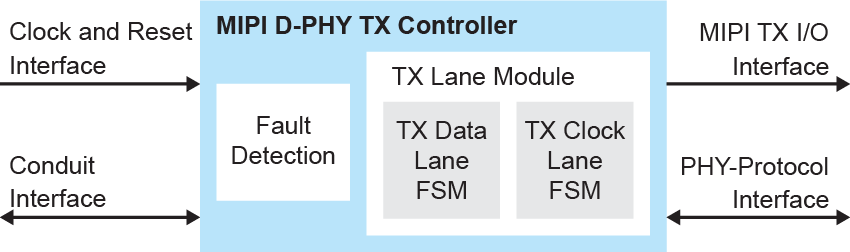

MIPI D-PHY TX Controller Block Diagram

MIPI D-PHY TX Controller Block Diagram

Features

  • 1, 2, 4, or 8 configurable data lanes
  • Unidirectional (CSI) and bidirectional (DSI) data lane
  • High-speed (HS) mode for data communication and low-power (LP) mode for data communication
  • 100 MHz core clock frequency
  • HS byte clock frequency from 50 Mhz to 187 Mhz (data rate of 400 Mbps to 1,500 Mbps)
  • Continuous HS byte clock and discontinuous HS byte clock
  • Supports 8 bits HS data width
  • Supports D-PHY-only, D-PHY with CSI, or D-PHY with DSI
  • Supports PHY protocol interface (PPI)
  • Supports end-of-transmission error, start-of-transmission sync error, control error, and LP escape error
  • Supports all Titanium FPGAs
