Titanium Ti240 FPGAs

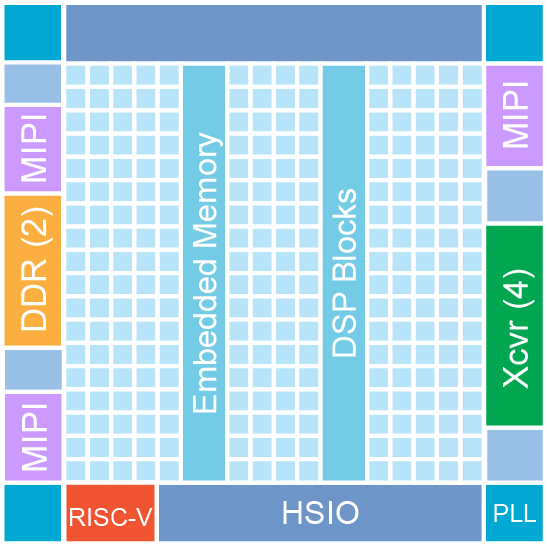

The Ti240 FPGA features the high-density, low-power Efinix® Quantum® compute fabric wrapped with an I/O interface. This FPGA has a variety of features, such as a hardened RISC-V block, SerDes transceiver, LPDDR4/4x DRAM controller, and MIPI D-PHY.

The quad-core hardened RISC-V block has a 32-bit CPU featuring the ISA RISCV32I with M, A, C, F, and D extensions, and six pipeline stages. You utilize the hardened RISC-V block by instantiating the Sapphire High-Performance SoC, combining the speed and efficiency of a hardened RISC-V block with the flexibility of peripherals in soft logic.

The full-duplex SerDes transceiver supports multiple protocols including PCIe 4.0, Ethernet SGMII, and Ethernet 10GBase-KR protocols as well as a PMA Direct mode with data rates from 1.25 Gbps to 16 Gbps.

Ti240 FPGAs include a hardened MIPI D-PHY, which you can use with MIPI CSI-2 and DSI controller IP cores to create multi-camera, high definition vision systems, edge computing, and hardware acceleration systems. Additionally, these FPGAs have a hardened DDR DRAM controller block that supports the LPDDR4/4x DRAM interface.

• Fabricated on a 16 nm process
• Quad-core hardened RISC-V block
• PCIe® Gen4 (16G)
• 10 Gigabit Ethernet
• High-voltage I/O (HVIO)—Simple I/O blocks that support the single-ended LVTTL and LVCMOS I/O standards.
• High-speed I/O (HSIO)—Complex I/O blocks that support single-ended and differential I/O; LVDS, subLVDS, Mini-LVDS, and RSDS (RX, TX, and bidirectional) up to 1.6 Gbps; and also operate as MIPI lanes at 1.5 Gbps
• MIPI D-PHY hard IP with speeds up to 2.5 Gbps
• LPDDR4/LPDDR4x PHY (supporting x16 or x32 DQ widths) with hardened memory controller
• Device configuration options including a standard SPI and JTAG interfaces
• Fully supported by the Efinity® software, an RTL-to-bitstream compiler

Applications

PCIe cards, RF repeaters and radio units, small cell/massive MIMO, cable modems, machine vision, automotive, AV equipment and broadcast, medical imaging, and video bridges.
